Monday, January 31, 2011

Cugir submachine gun




The 9mm Cugir submachine gun is more or less modern weapon, manufactured by the Romanian company Uzina Mecanica Cugir SA. It is apparently in use in Romania, and is offered for export.


Cugir submachine gun is a simple blowback weapon, firing from open bolt in full automatic or single shots. It features stamped steel receiver and short slotted barrel jacket, with muzzle compensator at the front. The manual safety / fire mode selector is patterned after Kalashnikov AK assault rifle. Weapon is fitted with side-folding metallic buttstock and a polymer furniture (pistol grip and short forend). Iron sights consist of the L-shaped flip-up rear (marked for 50 and 100 meters) and protected front sight.

Caliber 9x19mm Luger / Parabellum
Weight 2.7 kg
Length (stock closed/open) 427 / 650 mm
Barrel length 180 mm
Rate of fire 800-900 rounds per minute
Magazine capacity 30 rounds

Sunday, January 30, 2011

Orita M1941 submachine gun




The Orita M1941 submachine gun (Md. 1941 Orita géppisztoly) was designed by 1941 by Romanian army officer Martin Orita, possibly with the help of the Czechoslovak arms designers. It entered Romanian service in 1943, and was manufactured at CMC Cugir factory. An improved version of this weapon appeared in 1948, which was manufactured either with fixed wooden butt or with folding metallic butt. The Orita submachine guns served in Romanian army until early 1970s.


The Orita M1941 submachine gun is a blowback operated weapon which fires from open bolt. It has a separate firing pin which pops forward to hit the primer of the cartridge only when bolt finally comes into the battery. The charging handle is located on the left side of the receiver, and does not move when gun is fired. Early models had a cross-button type manual safety, located in the front of the trigger guard, and a sliding fire mode selector, placed vertically on the right side of the gun, in front of the trigger guard. Later ersions featured automated grip safety, made in the form of the lever protruding back from the trigger guard, and had no fire mode selector. The Orita M1941 submachine gun was fitted with wooden carbine-type stock and had adjustable rear sight, marked from 100 to 500 meters.

Caliber 9x19mm Luger / Parabellum
Weight 3.46 kg
Length  894 mm
Barrel length 287 mm
Rate of fire 600 rounds per minute
Magazine capacity 25 or 32 rounds

Monday, January 24, 2011

PP-19-01 "Vityaz" submachine gun




The PP-19-01 "Vityaz" is a recent development of the Izhevsk Mechanical Plant (IZHMASH); this weapon evolved from relatively unsuccessful PP-19 "Bizon" submachine gun on request from elite Russian law enforcement team "Vytyaz" (SWAT-type formation). Like its predecessor, PP-19-01 is based on the AKS-74U compact assault rifle, with simple blowback action, although "Vityaz" (Knight in Russian) uses more conventional box magazines and fires more powerful 9x19 ammunition which is now standard in Russia. As of mid-2007, PP-19-01 is in limited production in Izhevsk and is already in use by some specialized SWAT-type OMON teams of Russian police and other law enforcement agencies. The PP-19-01 "Vityaz" can fire most commercially-available 9x19 Luger/Parabellum or 9mm NATO ammunition, as well as Russian issue 7N21 armor piercing ammunition.

 PP-19-01 "Vityaz" submachine gun, right side.

The PP-19-01 "Vityaz" is based on AKS-74U compact assault rifle and shares about 70% of parts with the parten weapon. The bolt system is of simple blowback type, and gun is fired from closed bolt, ultilising standard AK-type trigger and safety / fire selector subsytems. A special magazine housing is attached below the receiver, which accepts proprietary double-stack magazines, made from polymer. Two magazines can be clipped together using special steel clip for faster reloading. PP-19-01 utilises AKS-74U-style side-folding skeletonized butt and tangent-type adjustable rear sight. Left side of receiver is fitted with Russian-standard side rail that will accept quick-detachable scope mounts with various sighting equipment. A modifiied version of PP-19-01 (Vityaz-SN) is available with additional Picatinny style acessory rails, left-side charging handle and additional safety lever on the left side of receiver.

 PP-19-01 "Vityaz" submachine gun, left side.

Two magazines for PP-19 "Vityaz" submachine gun, clipped together using special clip.

Caliber 9x19mm Luger / Parabellum (9x19 7N21)
Weight ~3 kg (empty)
Length (stock closed/open) 460 / 698 mm
Barrel length 230 mm
Rate of fire 750 rounds per minute
Magazine capacity 30 rounds
Effective range 100-200 meters

Wednesday, January 19, 2011

SR-2 Veresk submachine gun




The SR-2 Veresk submachine gun has been in development since mid-1990s; It was developed by the Central Scientific-Research Institute of Precise Mechanical Engineering (TSNIITOCHMASH) under request of FSB (Federal Security Service of Russia). After the successful development of powerful 9x21 SP-10 armor piercing ammunition and SR-1 pistol to fire it, FSB also requested a submachine gun to fire same ammunition. The subsequent SR-2 SMG (SR-2 stands for Spetsialnaya Razrabotka 2 - Special development #2), also codenamed as Veresk (heather) was first displayed in 1999, and since early 2000's is in use by FSB and other elite law enforcement forces of Russia. By modern standards, SR-2 is quite powerful and provides users with great armor penetration at ranges up to 100-150 meters, as well with significant stopping power of 9mm ammunition. Yet, it is relatively compact and light, and even can be carried concealed in special shoulder harness.

SR-2M - the latest version of Veresk SMG, with collimating (Red Dot) sight attached and shoulder stock extended.

SR-2M Veresk SMG with shoulder stock folded.

Unlike most submachine guns, SR-2 is gas operated, and its action is based on a scaled-down version of the SR-3 Vikhr compact assault rifle. SR-2 uses long stroke gas piston, located above the barrel. Rotating bolt has six lugs. receiver is made from stamped and formed steel, furniture is polymer. Kalashnikov-type levers are made on either side of the gun; right lever acts as a safety switch, and left is fire mode selector (top position is for automatic fire, bottom for single shots). Shoulder stock is made from stamped steel and folds up and forward, when not in use. On latest production SR-2M weapons shoulder stock is redesigned to allow the gun to use red dot type sights regardless of stock position. Standard sights are of simple design, with protected front post and flip-up rear; SR-2M SMGs are often issued with collimating (red dot) type sights for faster target acquisition. Magazines are of standard box type, and hold 20 or 30 rounds of ammunition. SR-2M submachine guns also are fitted with folding front grip, made from polymer.

First prototype of SR-2 Veresk submachine gun. It had an Uzi-type under-folding shoulder stock and wooden furniture.

Early production version of SR-2.

Caliber: 9x21mm SP-10 / SP-11
Weight: 1.65 kg empty
Length (stock closed/open): 367 / 603 mm
Barrel length: 172 mm
Rate of fire: 900 rounds per minute
Magazine capacity: 20 or 30 rounds
Effective range: 100 meters

Saturday, January 15, 2011

What a War Between China and the United States Would Look Like

This scenario was written by a number of experts and published by Popular Mechanics. I am reproducing the article for reference.
------------------------------

Any Chinese move to take over Taiwan would trigger a confrontation with the U.S. Navy and Air Force. Is the U.S. prepared to counter this growing threat?

The mobile DF-21D can target aircraft carriers, and there are no reliable U.S. defenses against it.

August 9, 2015 - 0400 Hours

The war for Taiwan starts in the early morning. There are no naval bombardments or waves of bombers: That's how wars in the Pacific were fought 70 years ago. Instead, 1200 cruise and ballistic missiles rise from heavy vehicles on the Chinese mainland.

Taiwan's modest missile defense network—a scattered deployment of I-Hawk and Patriot interceptors—slams into dozens of incoming warheads. It's a futile gesture. The mass raid overwhelms the defenses as hundreds of Chinese warheads blast the island's military bases and airports. Taiwan's air force is grounded, and if China maintains air superiority over the Taiwan Strait, it can launch an invasion. Taiwanese troops mobilize in downtown Taipei and take up positions on the beaches facing China, just 100 miles to the west. But they know what the world knows: This is no longer Taiwan's fight. This is a battle between an old superpower and a new one. Ever since 1949, when Nationalist forces retreated to Taiwan following the Communist victory in the Chinese Civil War, Beijing has regarded the island as a renegade province of the People's Republic. Now, in 2015, only the United States can offer Taiwan protection from China's warplanes and invasion fleet.

The nearest aircraft carrier is the USS Nimitz, which had just left the Japanese port of Yokosuka on Tokyo Bay when the missiles landed on Taiwan. Although Beijing has promised to attack anyone who interferes with this "internal security operation," the U.S. president orders the Nimitz and its escorts to the Taiwan Strait. The Nimitz battle group needs at least two days for the carrier to reach the strait, more than 1300 miles southwest. The closest other carrier group, near Pearl Harbor, is six days out.

Until the Nimitz arrives, it's up to Kadena Air Base in Okinawa, 400 miles northeast of Taiwan, to defend the island. By 0515 hours, Air Force pilots are taking off in 40 F-15E fighters to conduct combat air patrols over the island. Half of them are airborne when Kadena comes under attack. First, error messages begin popping up on computer screens. Modern air defense systems share sensor information and targeting data to better coordinate their actions, but this connection is going to become a liability. An army of hackers operating throughout China swarms the base's networks, tying up communications with gibberish and cluttering the digital screens of radar operators with phony and conflicting data.

Next, early-warning satellites detect the infrared bloom of 25 ballistic missiles launched from the Chinese mainland. Five detonate in orbit, shredding American communication and imaging satellites. While not a technical first—both the U.S. and China have knocked down satellites—it's the first outbreak of a hot war in space, and it partially blinds U.S. forces.

The 20 remaining missiles re-enter the atmosphere over Okinawa. Kadena's Patriot batteries fire missiles in response, but they are off-network and in disarray—10 missiles are struck by multiple interceptors, but an equal number slip through the defensive screen and hit ­Kadena. Some of the GPS-guided warheads contain bomb­lets that crater the base's two runways. Others air-burst over the base, devastating barracks, radar arrays and hangars. Kadena is far from destroyed, but until its runways can be repaired, it is out of the fight. The F-15s on the way to Taiwan must bank for Guam, 1300 miles southeast—they have the range to reach the base there, but only Kadena is close enough to stage efficient combat patrols. Also, F-22 stealth fighters based at Hickam Air Force Base, Hawaii, now cannot land on the base's shattered runways and reinforce the F-15s. With Kadena's satellites gone, the Nimitz and its flotilla of eight escorts, including Aegis-guided missile destroyers and a pair of submarines, are steaming toward an enemy possessing one of the world's largest submarine fleets and an arsenal of land-, air- and sea-launched antiship missiles.

About 8 hours after the mass raid on Taiwan, klaxons start blaring aboard the Nimitz and her escorts. There are more missiles in the air, this time headed straight for the carrier group. The Taiwan Strait is still more than 1000 miles away, but the war has come to the Nimitz. Skimming the surface of the Pacific are four supersonic missiles flying faster than their own roar.

Chances are that a war between China and the United States will not happen in 2015, or at any other time. Under normal circumstances, a war for Taiwan would simply be too costly for either side to wage, especially given the chance of nuclear escalation. But circumstances are not always normal.

"I get criticized often for saying this, but I think Beijing is capable of acting irrationally when it comes to Taiwan," says retired Rear Adm. Eric McVadon, who served as a naval attaché in Beijing and is currently senior adviser of Asia-Pacific studies at the Institute for Foreign Policy Analysis in Cambridge, Mass. "They are obsessed with Taiwan. On some given day, it's entirely possible for people to be standing around a table in the Politburo in Beijing, and someone gets the ball rolling. And when it stops, we're at war."

The deciding factor could be anything from domestic unrest in China's increasingly rebellious rural provinces to a spike in aggressive, vocal Taiwanese nationalism. However, like many Pentagon war games, this notional conflict is not concerned with potential political triggers, but instead with evaluating China's raw military capabilities. The scenario is based on analyses by civilian think tanks including RAND Corp., Chinese defense papers and interviews with senior Pentagon officials.

The chance of war may be remote, but the Chinese strategy to deny American access to battlegrounds near China's coasts—and the hardware to pull it off—certainly exists. Since the Gulf War, the Chinese military has shifted from academic analysis of how to defeat U.S. aircraft carriers in the East China and South China seas to buying and building the weapons to make the plan a strategic reality. This is not a Cold War–era buildup, aimed at waging or deterring an apocalyptic last stand. This is a force engineered to win a limited local war—for example, keeping the United States away long enough to win Taiwan.

China's economic boom has allowed its military to rapidly expand its inventory of cruise missiles, aimed at Taiwan, and multistage ballistic missiles with enough range to hit much of Asia. The People's Liberation Army has also bought submarines­—including at least 12 whisper-­quiet diesel–electric models from Russia—and is developing a large fleet of warplanes.

But China's most dangerous new weapon could be an antiship ballistic missile (ASBM), specifically designed to target a moving aircraft carrier. The United States has 11 carriers. To win a future conflict, China would not have to destroy every one of them, just the pair that would be available to respond to a fight off China's coast.

Senior Pentagon leaders are becoming increasingly concerned about the Chinese arsenal. Adm. Robert ­Willard, head of the Navy's Pacific Command, told Congress in March that "the PLA's continued military advancements sustain a trend of shifting the cross-strait military balance in Beijing's favor." In June, in a speech at the Asia Society in Washington, D.C., Adm. Mike Mullen, chairman of the Joint Chiefs of Staff, added that he has "moved from being curious to being genuinely concerned" about the buildup.

The man who would face the Chinese in battle, Adm. Patrick Walsh, the current commander of the U.S. Navy's Pacific Fleet, sees preparation as a way to avoid a future fight. "When we look at these sorts of developments, such as the ASBM, they are technological developments that we respect, but do not necessarily fear," Walsh says. "The key element in any sort of deterrent strategy is to make it clear to those who would use a given piece of technology that we have the means to counter it, and to maintain a technological edge."

Right now the Chinese seem to have taken the lead in this new arms race. When RAND released a report in 2000 describing the potential outcome of a Sino-­American conflict over Taiwan, the United States won the war handily. Nine years later, the nonpartisan think tank revised its analysis, accounting for Beijing's updated air force, its focus on cyber warfare and its ability to use ballistic missiles to take out American satellites. RAND's new conclusion: The United States would ultimately lose an air war, and an overall conflict would be more difficult and costly than many had imagined.

The USS Nimitz is not just an American symbol. The air power delivered by an aircraft carrier, and its crew of nearly 6,000, can sway the tide of a battle--or prevent one from occurring. That's why potential foes like China are investing in weapons that could target carriers and nullify U.S. global influence.

August 9, 2015 - 1230 Hours

The Kilo-class submarines are waiting. Like any patient hunter, that's what they do best. Smaller and slower than their nuclear-powered counterparts, the 230-foot boats are fitted with diesel–electric engines and sound-absorbing tiles that make them virtually invisible to active and passive sonar. They have chosen the spot for an ambush wisely, lurking near rises in the seafloor that clutter sonar returns, and the Nimitz's escorts don't detect the Kilos.

The Chinese subs rise to launch depth and fire two missiles each from their torpedo tubes. The Russian-made weapons burst out of the water and tear directly at the carrier group.

Alarms are wailing on every ship as sailors dash to battle stations, but the Nimitz is the sole target of these Russian-built antiship cruise missiles. They are called SS-N-27B Sizzlers. When the missiles come within 10 nautical miles of the carrier, a rocket-propelled warhead separates from each and boosts into a darting, Mach 3 sprint, skimming along just 30 feet above the surface of the waves.

In the final moments, chaff launchers on the Nimitz release a volley of decoys, while a trio of robotic chain guns aboard the Nimitz—the last line of missile defense—automatically pivot toward the warheads and fire hundreds of 20-mm rounds per second. One Sizzler misses. Two more break apart under fire. The fourth detonates against the Nimitz, tearing a hole in its port side. More missiles arc across the sky as Aegis cruisers shoot antisub munitions into the ocean, tearing apart one Kilo. The other sub eventually will be hunted down by aircraft carrying sonar and torpedoes, but the damage is done.

On the Nimitz, there's no time to mourn the dead. The next attack will come soon. The crew assess the battle damage and begin repairs while the carrier presses on.

August 9, 2015 - 1921 Hours

On the southeast coast of China, more than 500 miles west of the Nimitz, an over-the-horizon radar array has picked up the carrier's position. Based on coordinates supplied by the now-sunk Kilos, the array seeks the carrier by banking radio waves off the atmosphere to peer beyond the earth's curvature. After the signals indicate the flotilla's rough location, the Chinese deploy a drone to confirm the radar fix. This 12-foot-long unmanned aerial vehicle (UAV) does its job before being blown apart by an antiair missile fired by a destroyer. The Nimitz is swarmed within the hour.

A formation of fighters appears on the carrier's radar screens. Defensive missiles lift off from a picket line of escort vessels, and the Nimitz begins launching its own F/A-18s to meet the incoming aircraft, which appear to be more than a dozen outdated Jian-7s. With no satellite coverage, thanks to the antisat attack, the surprised escorts can only form a defensive ring around the carrier as the J-7s unleash a volley of antiship cruise missiles.

The U.S. escorts fire at all inbound airplanes, not knowing that the Chinese have retrofitted these older warplanes to serve as unmanned decoys. The battle group cannot trust its computer networks, given the hacking attacks on Kadena, so they must pick targets independently. The defense crews double up on some incoming fighters, wasting their defensive missiles. Radar contacts are vanishing as airplanes and incoming air-launched cruise missiles are destroyed, but one missile gets through, ripping another fiery hole in the Nimitz.

By the time F/A-18 pilots radio that no one is parachuting from the downed J-7s, the main Chinese attack force of high-performance, manned J-10 and J-11 warplanes arrives from the east. The carrier group's F/A-18s move to intercept them. But the Chinese fighters aren't here to dogfight—they launch antiship cruise missiles at the carrier and disengage.

The Aegis cruisers fire a slew of defensive missiles; F/A-18s fire antiair missiles. The sky over the Pacific is a lattice of smoke trails, and through the call and response of sonic booms there is another explosion as the Nimitz takes its third cruise missile hit of the day.

There is no lull, no time to regroup—unharmed Missile Defense Agency satellites have detected another volley of ballistic missiles fired from China. These aren't projected to hit Taiwan, Okinawa, or any other land-based target. They are tracking toward the carrier group. These are ASBMs.

The Aegis cruisers respond, launching multistage SM-3 interceptors that rise like a cluster of suns. Once in space, they deploy kill vehicles, self-guided craft designed to ram ballistic missiles. Only one connects. Four ASBMs re-enter the atmosphere and perform a swooping, high-g maneuver that allows them to scan the ocean's surface for their moving target.

So the battle for the Nimitz, and for Taiwan, ends as it began, with missiles. At 2015 hours, two ASBMs dump harmlessly into the sea, victims of technical glitches. The other two dive into the carrier, shattering the superstructure and killing hundreds. The damage doesn't reach the two nuclear reactors, but two gaping holes in the flight deck, and the carnage in the hangars below, render the ship useless. The Nimitz must retreat. If this were an all-out war, the PLA would push one last time to sink the carrier. But China's goal was never to trigger an extended, costly, bloody contest of superpowers. The goal was to deny American access to Taiwan prior to an invasion.

The following morning, Chinese troop transports cross the strait and secure the island without firing a shot. A brutal ground war was never part of the plan. Beijing calculated that without American assistance, Taipei would surrender. It also predicted an endless loop of video footage of the crippled Nimitz returning to port. There is more than one way to win a war.

China's J-10 multirole fighter is comparable to America's F-16 Fighting Falcon.

The U.S. Military shocked the world when it unveiled the sophisticated weaponry used to defeat Iraq's military in 1991. Now potential adversaries have invested in tools similar to those that made the United States military so dominant during the Gulf War. "Since the end of the Cold War, we've been in the position to unleash substantial quantities of precision firepower on our adversaries, while suffering none of that type of attack," says RAND's David Shlapak, one of the authors of the think tank's original 2000 report on a war over Taiwan as well as the followup 2009 report. "That led us to a certain style of warfare—bases that are sanctuaries, lines of communication that are indestructible."

That technological edge led to overconfidence, and Cold War skill sets, such as submarine hunting, atrophied. At the same time, the Russians sold quiet diesel–electric Kilo submarines to countries like Iran and China. When the Navy placed Rear Adm. J.J. Waickwicz in charge of the Fleet Anti-Submarine Warfare Command in 2004, he determined it would take years to re-establish sub-hunting expertise. "There was a lack of training and really good equipment to manage the problem," says Waickwicz, now retired. "We have to be willing to put the funding into synthetic and simulation training."

When it comes to missiles, China may be surpassing the United States. Earlier this year, the Pentagon said China has "the most active land-based ballistic and cruise missile program in the world." And no one else has developed an ASBM. Despite billions of dollars in research and controlled tests, the results of a clash between sophisticated missiles and modern defense interceptors are unknown. If missile defense tools do not perform as advertised, carriers could be pushed so far from a fight that they'd become irrelevant, nullifying America's principal tool of power projection.

What can be done? Most war games end with a "hot wash," a kind of debriefing, where participants discuss what went right and what went completely wrong. They discuss what they would do differently if they could roll back the clock. And sometimes, they do just that—rewind and run through the fight all over again.

August 9, 2015 - 1215 Hours

The battle to defend the Nimitz no longer begins with missiles, but with robots. Hours before the carrier group reaches those lurking diesel–electric Kilos, the carrier's escort ships deploy a handful of unmanned underwater vehicles (UUVs) to patrol between Taiwan and Okinawa.

These torpedo-size drones use continuous active sonar (CAS) arrays, which release a steady stream of ­energy, the sonar equivalent of a spotlight. "CAS will change the calculus from the sub being the hunter, to being the hunted," says Waickwicz, who now works for Virginia-based Alion Science and Technology, which is testing its CAS technology on a surface vessel and next year plans to begin testing the sonar on UUVs.

The robots protecting the carrier group aren't armed, but the nuclear-powered Virginia-class sub monitoring their progress certainly is. The Chinese subs lying in ambush must scatter before firing or be sunk.

There are ways to make air ­defenses more resilient as well. This time ­Kadena is better prepared for hacker attacks, thanks to sophisticated missile defense batteries like the Medium Extended Air Defense System. Instead of relying on a single computer network to coordinate antiair launches, each MEADS can operate autonomously and cover 360 degrees of sky.

With the Air Force base functional, F-15s (and, later, F-22s flying in from Hawaii) can guard the Nimitz, engage the incoming decoys and preserve the group's supply of antiair missiles.

The Chinese fighters launch their missiles, but only two reach the ­Nimitz. Pilots and sailors are killed and wounded, but the flight deck is intact, and the carrier's mission to protect Taiwan can continue.

There's one more threat to counter, though. The ASBMs take off from five different locations in southeastern China. One of them is spotted by an American stealth UAV, one of a handful operating high-endurance missions out of Kadena. In 2009 the U.S. Air Force confirmed the use of the first radar-deflecting drone—the RQ-170 Sentinel—on surveillance missions over Afghanistan.

By 2015 the Air Force is flying heirs to the Sentinel that are armed with experimental Network-Centric Airborne Defense Element missile interceptors. Fired from standard air-to-air launchers, these missiles can strike ballistic missiles before they leave the atmosphere. When tensions between China and Taiwan began to rise, the Air Force quietly rushed the experimental weapons from the Nevada Test and Training Range to Kadena.

The high-endurance UAVs can loiter, unseen, waiting for a ballistic missile launch. When their sensors detect the rocket's plume, two of the UAVs fire at the rising missiles, and one scores a hit; the missile disintegrates into a ball of burning fuel and debris. That's one fewer carrier-­hunting missile streaking at the Nimitz.

Another is knocked out in space by SM-3 interceptors. Now three are entering the ASBM's signature death dive. The Aegis ships shoot again, but during this replay they are using a new model, the SM-2 Block IV. Like most terminal-phase systems, it is a defensive Hail Mary. Two ASBMs miss, but a third is clipped by an SM-2 and dumps into the sea.

The hot wash ends with the carrier safe, its presence thwarting the invasion and tipping the scales toward Taiwan during cease-fire negotiations. Preparedness is the cornerstone of deterrence, and some analysts say that the Pentagon must match ­Chinese advances to prevent conflict. "Part of what keeps the probability of war so small is that the U.S. and Taiwan have taken steps to make sure it would be painful for China," RAND's Shlapak says. As it adapts to China's strengths, the Pentagon is confronted with an unfamiliar position. The battle for Taiwan—even if no shots are ever fired—has already begun.

Thursday, January 13, 2011

PP-2000 submachine gun





The PP-2000 is the latest development of the famous Instrument Design Bureau (KBP) from Tula, Russia. It has been first displayed on public in 2004, although the patent for its layout has been filed in 2001 and issued in 2003. Today (mid-2007) it is already in use with some Law Enforcement (police and state security) units of Russian Federation.

PP-2000 as displayed at Interpolytech-2004 exhibition in Moscow; note spare magazine inserted at the rear of the gun to serve as a shoulder support.

The main "niche" for PP-2000 is a personal defense weapon for non-infantry military personnel, as well as close combat weapon for special forces and special law enforcement teams. As such, it is a compact weapon with as few parts as possible for enhanced reliability, simplified maintenance and low cost. Also, it is designed to fire any standard 9x19mm "ball" (FMJ) ammunition, as well as +P+ class 7N31 armor piercing ammunition of Russian origin. When loaded with 7N31 ammo, PP-2000 offers enhanced penetration against body armor, while maintaining stopping power against "soft targets", which is believed to be superior to foreign small-caliber rivals, like 5.7mm FN P90 or 4.6mm H&K MP-7.

PP2000, current production version with detachable folding butt, left side.

The PP-2000 is a conventional blowback operated submachine gun, and it is fired from closed bolt for enhanced accuracy. The bolt is telescoped around the rear part of the barrel; front part of the bolt is exposed above the barrel and is fitted with side-folding charging handle. The receiver / housing is made from polymer as a single unit with pistol grip and trigger guard. Trigger guard is enlarged and its front part is shaped to provide front hand grip. The magazine housing is located inside the pistol grip; Housing for spare magazine is located at the rear end of the receiver, and, when inserted, spare magazine is used as a crude shoulder support (buttstock), although and optional removable side-folding butt is currently offered with the gun. Safety / fire mode selector is conveniently located at the left side of the receiver, above the pistol grip. PP2000 is fitted with fixed open sights, and a Picatinny-type accessory rail is provided on the top of the receiver cover. This weapon is most often encountered with various types of red-dot sights, best suitable for close combat. Special mount permits installation of the tactical light or laser aiming module below the front part of the enlarged trigger guard.

PP2000, current production version with detachable folding butt, right side.

PP2000, current production version with detachable folding butt, left side, butt unfolded.

Caliber: 9x19mm Luger/Para
Weight: ~ 1.4 kg
Length (stock closed/open): 582 / 340 mm
Barrel length: no data
Rate of fire: 600 rounds per minute
Magazine capacity: 20 or 30 rounds
Effective range: 50-100 meters

Friday, January 7, 2011

PP-90M1 submachine gun

The PP-90M1 submachine gun is the latest development of the Tula-based famous KBP design bureau. It is a completely new development, despite its designation, that could misleadingly suggest that it is a derivative of the PP-90 and PP-90M folding clandestine machine guns. PP-90M1 could be described as a more modern rival to the "Bizon" PP-19 submachine gun, made in Izhevsk. It is intended to provide compact and lightweight police weapon that could lay serious amount of fire, thanks to its large-capacity helical magazine (similar in basic concept and design to "Bizon" and Calico submachine guns magazines). The most interesting part about PP-90M1 is, however, that it also could be fitted with adapter and then use typical box magazines, which are lighter, have slimmer profile and 1/2 capacity of standard helical magazine. It is not yet known if PP-90M1 is in use with any major law enforcement or security force in Russia.

PP-90M1 submachine gun with box magazine and adapter.

PP-90M1 is a conventional blowback operated, selective fired machine gun. The gun housing is made entirely from plastic, including integral pistol handle and trigger guard. The top-folding buttstock is made from stamped steel. Safety / fire mode selector is located at the left side of the gun, above the trigger. The charging "button" is located just above the muzzle and should be pressed with one finger (not that easy to do so!) to retract the bolt. It is also unsafe, in my opinion, and mounting of silencer will interfere with charging, too. Weird! Another strange, if not weird, thing is the field stripping. To disassemble the PP-90M1, one must screw out the long disassembly screw, located above the magazine. This requires no tools, but can take about 20-30 seconds. When screw is gone, you then can took the barrel, bolt and return spring out of the gun by pulling it forward.

PP-90M1 submachine gun with helical large capacity magazine.

Feeding is from helical magazines of large capacity, or from typical box magazines, using detachable adapter, which also serves as a forearm. Helical magazines are made from plastic (mostly), while box magazines are made from sheet metal. The PP-90M1 is strong enough to routinely fire powerful Russian-made 9x19mm ammo with armour piercing bullets, 7N21 and 7N31, which is about 9mm +P+ or even +P++ class in the terms of barrel pressure. Any military or commercial 9x19mm ammo can be fired from PP-90M1 safely as well.

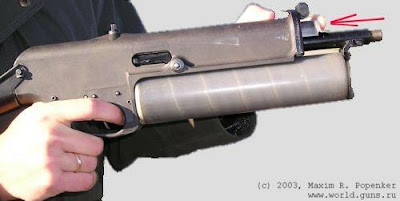

The most weird feature of PP-90M1 is its charging system, which is made as a button, located just above the muzzle. It had to be pressed with the finger (see arrow) to cock the gun. Not the safest way, if anyone will ask me.

Left side view on the PP-90M1. Clearly seen are the safety / selector switch above the trigger and a large disassembly screw above the helical magazine.

The magazine change procedure. The magazine catch is located at the front of the trigger-guard.

Caliber: 9x19mm 7N21 and 7N31, compatible with all 9x19mm Luger/Parabellum ammo
Weight: ca 1.7 kg less magazine
Length (stock closed/open): 424 / 620 mm
Rate of fire: 500 rounds per minute
Magazine capacity: 32 rounds (box magazine) or 64 rounds (helical magazine)
Effective range: up to 200 meters

Sukhoi PAK FA: Flight photos




The Sukhoi PAK FA (Russian: Перспективный авиационный комплекс фронтовой авиации, Perspektivny aviatsionny kompleks frontovoy aviatsii, literally "Prospective Airborne Complex - Frontline Aviation") is a fifth-generation jet fighter being developed by Sukhoi OKB for the Russian Air Force.

Below as some preliminary photos of this new stealth fighter from Russia.





Monday, January 3, 2011

PP-93 submachine gun





The PP-93 submachine gun had been developed circa 1993 as a non-folding version of earlier PP-90 clandestine submachine gun. Due to improved ergonomics, the PP-93 became slightly more popular, than the boxy PP-90, and is in use with various Russian law enforcement and security agencies. It is said to be quite accurate in either semi-automatic or full automatic (burst) mode. PP-93 also is relatively compact and have slim profile, and thus can be carried concealed.

PP-93 submachine gun with open (unfolded) buttstock

PP-93 is a conventional, blowback operated submachine gun, made mostly of stamped steel. The magazine is inserted in the pistol handle, with the safety / selector switch located above the trigger guard. PP-93 can be fired in single shots or in full auto. Low profile sights are fixed to the top of the receiver, the top-folding rudimentary butt is made from stamped steel. The charging handle is somewhat unusual in design and position, being made as a cylindrical slider under the front of the receiver, ahead of the trigger guard. To be charged, this slider must be grasped by fingers and retracted all the way back, then released. When gun is fired, charging handle remains stationary. This may be not the most comfortable or fastest way to charge the gun, but it results in slim and snag-proof profile of the weapon, intended for concealed carry and quick draw scenarios. PP-93 could be fitted with laser pointer and detachable silencer. It could be carried in special holster.

PP-93 submachine gun with folded butt and attached silencer

Caliber: 9x18mm PM
Weight: 1.47 kg empty
Length (stock closed/open): 325 / 577 mm
Rate of fire: 600 - 800 rounds per minute
Magazine capacity: 20 or 30 rounds
Effective range: up to 100 meters
