FN SCAR



The US Special Operations Command (US SOCOM) issued a solicitation for the procurement of SOF Combat Assault Rifles (SCAR) on October 15th, 2003. This solicitation requested a new combat rifle, specially tailored for the current and proposed future needs of the US Special Forces, which are somewhat different from latest generic US Army requirements,which are being fulfilled by the newest Heckler-Koch XM8 assault rifle.

FN SCAR-L / Mk.16 rifle prototype (1s generation, late 2004), left side view

The key difference in basic requirements between XM8 and SCAR is that, while XM8 is a single-caliber weapon system, tailored for the 5.56x45mm NATO ammunition, the SCAR should be available in various different calibers. Initial SOF requirements included two basic versions of SCAR system - the SCAR Light (SCAR-L), available in 5.56mm NATO, and the SCAR heavy (SCAR-H), which should be initially available in significantly more powerful 7.62x51 NATO chambering, andshould be easily adaptable in the field to other chamberings. These other chamberings initially include the well-spread 7.62x39 M43 ammunition of the Soviet / Russian origins, and probably some others (like the proposed 6.8x43 Remington SPC cartridge, especially developed for US Special Forces).

FN SCAR-L / Mk.16 rifle, 2nd generation prototype, with FN EGLM 40mm grenade launcher attached
The key idea of SCAR rifle system is that it will provide the Special Forces operators with wide variety of options, from short-barreled 5.56mm SCAR-L CQC variation, tailored for urban close combat, and up to long range 7.62x51 SCAR-H Sniper variant, as well as 7.62x39 SCAR-H, which will accept "battlefield pickup" AK-47/AKM magazines with 7.62 M43 ammunition, available during the operations behind the enemy lines. Both SCAR-Land SCAR-H shall be initially available in three versions, Standard (S), Close Quarters Combat (CQC) and Sniper Variant (SV; now it is dubbed Long Barrel - LB). All these variants, regardless the caliber and exact configuration, will provide the operator with the same controls layout, same handling and maintenance procedures, and same optional equipment, such as sights,scopes, and other current and future attachments.

FN SCAR-H / Mk.17 rifle prototype in CQC (Close Quarter Combat,short barrel) configuration,7.62x51 mm NATO version
Late in 2004 USSOCOM announced, that the winner for the initial SCAR contracts is the FN USA, an US-based subsidiary of the famous Belgian company Fabrique Nationale Herstal. Prototype rifles were manufactured by FN Manufacturing Inc, US-based subsidiary to FN Herstal; This company will also handle series production of rifles. Starting mid-2005, first SCAR rifles went to end users in US Special Operation Forces. Since USSOCOM uses Navy-type "mark" designations, SCAR rifles were officially designated as 5.56mm Rifle Mark 16 (SCAR-L / Light) and 7.62mm Rifle Mark 17 (SCAR-H/ Heavy). It is believed that Mk.16 and Mk.17 rifles will gradually replace most rifle systems now in service with US SOCOM forces, such as M4 carbines, M16 rifles, M14 rifles and Mk. 25 sniper rifles.

FN SCAR-L / Mk.16 rifle partially disassembled; note additional quick-detachable barrel
As it turned out, FNSCAR rifles are not based on any previous weapons but designed from scratch. In all variants FN SCAR rifles feature gas operated, short stroke piston action with rotating bolt locking. Bolt has seven radial locking lugs that lock directly into the barrel extension.

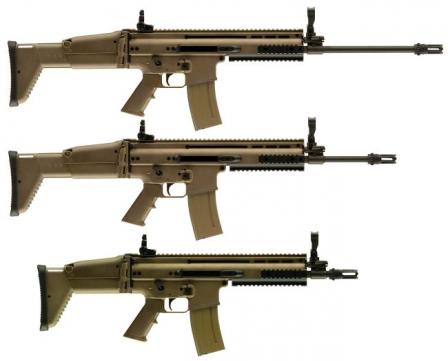

5.56mm NATO FN SCAR-L / Mk.16 rifles of current (2007/2008) production, top to bottom in Long Barrel (LB), standard (Std) and Close Quarter Combat (CQC) configurations
Receiver is made from two parts, upper and lower, connected with two cross-pins. Upper part is made from extruded aluminium, lower part is made from polymer. SCAR-L and SCAR-H use similar upper receivers that differ only in the size of ejection port. Other different parts include caliber-specific bolt, barrel, and lower receiver with integral magazine housing. Parts commonality between SCAR-L and SCAR-H is astonishing 90%. Barrels are quick-detachable, and held in the upper receiver with two cross-bolts. Barrel change procedure requires minimum amount of tools, takes just several minutes and there is no need to adjust the headspace after the change.

7.62mm NATO FN SCAR-H / Mk.17 rifles of current (2007/2008) production, top to bottom in Long Barrel (LB), standard (Std) and Close Quarter Combat (CQC) configurations
The trigger unit with ambidextrous safety-fire mode selectors witch allows for single shots and full automatic fire, with no provisions for limited-length bursts mode. The charging handle could be easily installed on either side of the weapon, so the upper receiver has respective cuts on both sides. Top of the upper receiver is covered by the full-length integral Picatinny rail (MIL-STD 1913); additional Picatinny rails are mounted on both sides and under the free-floating handguards. Side-folding polymer buttstock is adjustable for length of pull, and is shaped to provide positive cheek rest with adjustable cheek support. SCAR rifles are fitted with removable, adjustable iron sights, with folding diopter-type rear sight on the receiver rail, and folding frontsight onthe gas block. Any additional type of sighting equipment, necessary for current tasks, including telescope and night sights, can be installed using MIL-STD 1913 compatible mounts.

Mk.16 SCAR-L rifle will use improved M16-type magazines, made of steel; Mk.17 SCAR-H will use proprietary 20-round magazines in 7.62x51 NATO chambering, or standard AK-type magazines in proposed 7.62x39 M43 chambering. Current prototypes of SCAR rifles do not have bayonet mounts,and, probably, will never have one.


Mk.16SCAR-L (Light) Mk.17 SCAR-H (Heavy)
Caliber 5.56x45 NATO 7.62x51NATO basic
7.62x39 M43 and others additionally
Overalllength, standard configuration 850 mm(max) / 620 mm (min) 997 mm (max) / 770 mm (min)
Barrellength 254mm/10" (CQC), 355mm/14" (Std), 457mm/18" (LB) 330mm/13"(CQC), 406mm/16" (Std), 508mm/20" (LB)
Weight 3.5kg empty 3.86 kg empty
Rate of fire 600rounds per minute 600 rounds per minute
Magazinecapacity 30 rounds standard 20rounds (7.62x51 NATO)
30 rounds (7.62x39 M43)
